    Embedded 2D Barcode Scan Module QR Code Reader Module For IOT Machine

    Ask Lasest Price
    Brand Name : HONORWAY
    Model Number : HW-1560g
    Certification : CE ROHS FCC ISO9001
    Price : $15-18/pcs
    Payment Terms : T/T
    Supply Ability : 10Kpcs/month
    Delivery Time : 3-7days
    • Product Details
    • Company Profile

    Embedded 2D Barcode Scan Module QR Code Reader Module For IOT Machine

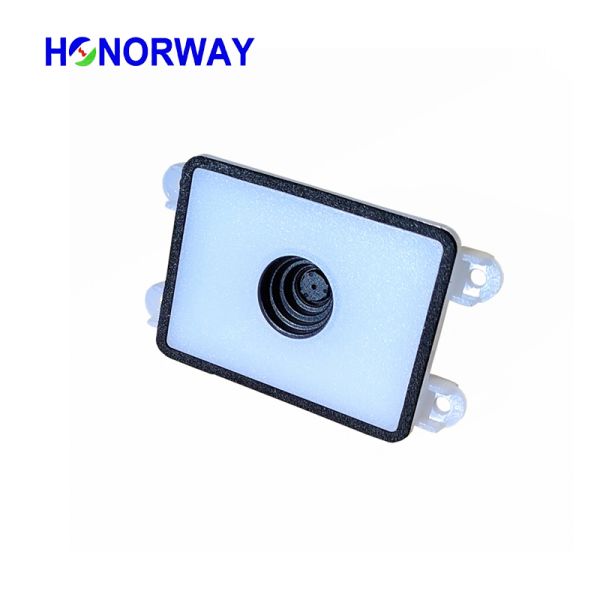

    HW-1560g Compact Global Shutter Sunshine Readable Embedded 1D 2D QR Barcode Scanner Reader Module for IOT Machine

    The HW-1560g is a compact embedded 2D barcode scanner module designed for seamless integration into kiosks, ticket validators, outdoor vending machines, and tablet-based systems. Featuring a global shutter CMOS sensor (752×480 pixels) and a 32‑bit high‑performance CPU running at 1GHz, it delivers fast, accurate decoding of both paper and screen‑based barcodes down to 4mil resolution.

    Key Features
    • Global Shutter Sensor - Eliminates motion blur, ensuring reliable capture of fast‑moving barcodes.
    • Dual Media Support - Reads 1D/2D barcodes from paper labels and electronic screens (QR, PDF417, Data Matrix, UPC/EAN, Code128, etc.).
    • Sunlight Readable - Anti‑glare design allows direct operation under bright sunlight without performance loss.
    • Flexible Interfaces - Supports RS232 (DB9), USB (HID / virtual COM), and TTL‑232 for broad system compatibility.
    • Multiple Trigger Modes - Manual, auto‑sensing, continuous, and host mode for diverse application needs.
    • Compact & Easy to Install - Large scan window with small footprint (56×33×14mm); weight only 15g.
    • Robust Indication - Buzzer and configurable LED_C output for successful decode feedback.
    Typical Applications
    • Public transport: bus ticket validators, subway gates
    • Outdoor vending machines and self‑service kiosks
    • Tablet‑integrated POS and inventory terminals
    • Industrial production lines and logistics sorting
    Specifications Snapshot
    • Resolution: 0.3MP (752×480) global shutter
    • Decoding precision: 4mil
    • Field of view: 76.7° (H) x 53.4° (V)
    • Typical DOF: 15‑150mm (10mil Code39), 15‑150mm (15mil QR)
    • Operating voltage: DC 5V; current: 250mA max, 100mA standby, 1mA sleep
    • Temperature range: -30℃ to 65℃ (operating), -40℃ to 70℃ (storage)
    • ESD and drop tested: 1.3m drop resistance
    Why Integrate HW-1560g?

    With its high‑speed decoding, sunlight immunity, and multiple interface options, the HW-1560g reduces development effort while delivering industrial‑grade reliability for outdoor and indoor scanning applications.
